Collaboration live Protocol

Directions on how to perform an exam via Collaboration Live:

•Scan the patient as normal using the protocol appropriate for your exam.  Example level 3 fetal echo
•Upon completing the exam message the scribe via teams working with the doctor the patient is seeing that day. Give them report as you would normally give to the doctor:  if everything was normal, what images you could not get, any anomalies or concerns, BPP score, and Doppler values.
•When the doc is ready to see the patient the scribe will let you know and then you can call the doc from the machine following the directions below.
COLLABORATION LIVE
Instructions to Call a Remote Office from Ultrasound System
Updated 6/14/2020
•Start the exam and complete ultrasound scan as per routine.
•Once exam is completed, use TEAMS chat to message the scribe or medical assistant to inform them patient is ready. The scribe will let the sonographer know when the physician is ready for the call.
•When the physician is ready for the Collaboration Live call, follow the below steps.
1. Open the Camera on the top of the EPIQ (flip cover up)
2. Click on the cloud with the phone on the bottom right corner
3.
4.Highlight the physician or location, then push call.
5.

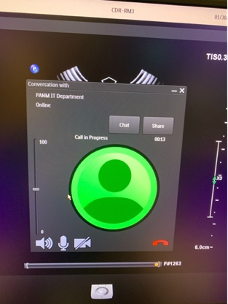

6.Once the call is answered, click on the video camera icon.
7.

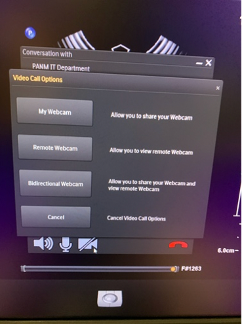

8.Next, click on the Bidirectional Webcam.
9.

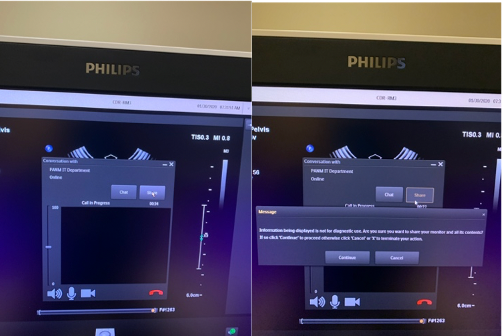

10.Then Click Share and Continue
11.

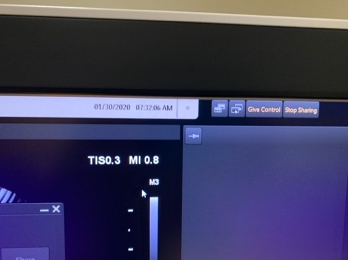

12.Then click, give control in the top right corner.
13.
•What I usually do at this point is introduce the patient to the doctor by pointing the camera at the patient.
•After the doctor has been introduced to the patient turn off your webcam by minimizing that screen, and let the doc start talking to the patient.  While he is doing that start scanning the baby starting at the head and scan through showing him the structures in the brain, the abdomen, the spine, arms, and legs.  Then if the patient is a fetal echo show him a 4 ch heart, the outflow tracts, the arches, and do a sweep from the abdomen up the 3 vessel trachea view.  Then if there was anything you are concerned about  show him that (example pylectasis or CPC’s).  Then when he is done talking  ask him if there anything else he would like to see?  If he says no and says everything looks fine then let him say his goodbyes to the patient.
•Click end call at the bottom of the screen
•Walk the patient to the front desk where the doctor will have messaged them on how to schedule the patient back.
